GreenTE charging station systems are a set of services related to the production of turnkey electric vehicle charging equipment. Specialists of our company carry out a set of measures to collect regulatory documents related to the project, as well as develop project documentation, production and commissioning.

We carry out:

  • Collection of regulatory documents. Project development;
  • Delivery of the necessary equipment to the installation site;
  • Installation and commissioning;
  • Two-year warranty and post-warranty service.

Application of transformer substations

Complete transformer substations are devices destined to provide uninterrupted power to charging stations. Our equipment products are designed to work in temperate climates and satisfy the IP-45 safety standard.

Depending on the necessary requirements, we offer the following types of substations:

  • Packaged transformer substations of kiosk type
  • Packaged transformer substations, three-phase, masted
  • Packaged transformer substations of rural type
  • Packaged transformer substations, three-phase, urban type
  • Packaged transformer substations of industrial type

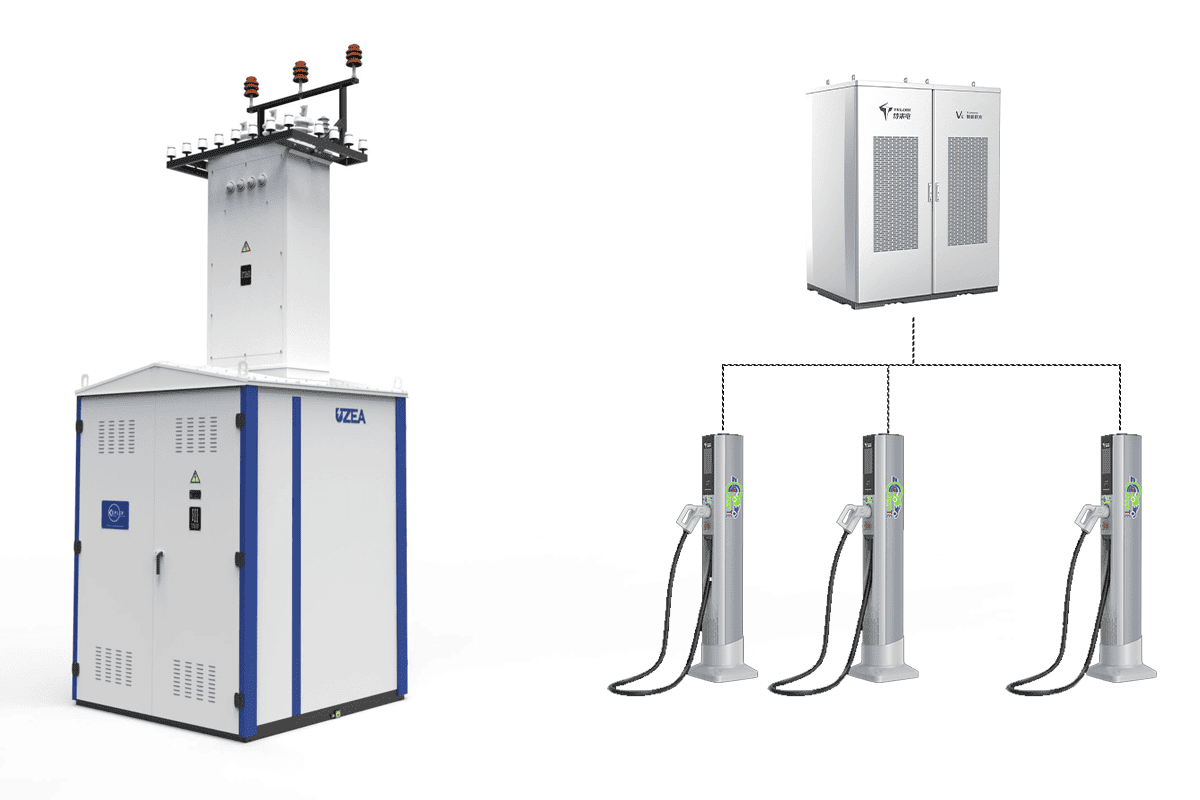

GreenTE packaged transformer substations of stand type (KTPK)

Групповые зарядные станции TZKX

GreenTE packaged transformer substations of stand type (KTPK)

Packaged transformer substations of kiosk type (KTPK, small—sized KTPKm) are destined for receiving, converting and distributing electric energy of three—phase alternating current of industrial frequency 50 Hz with a capacity from 25 to 630 kVA.

Specifications of KTPK

  • Power transformer power: up to 630kVA
  • Rated voltage on high voltage side (HV): 6-10kV
  • Rated voltage on low voltage side (LV): 380/400V
  • Operating frequency: 50Hz
  • Maximum permissible power of the connected charging station: 480kW*

* according to the project.

Групповые зарядные станции TZKX

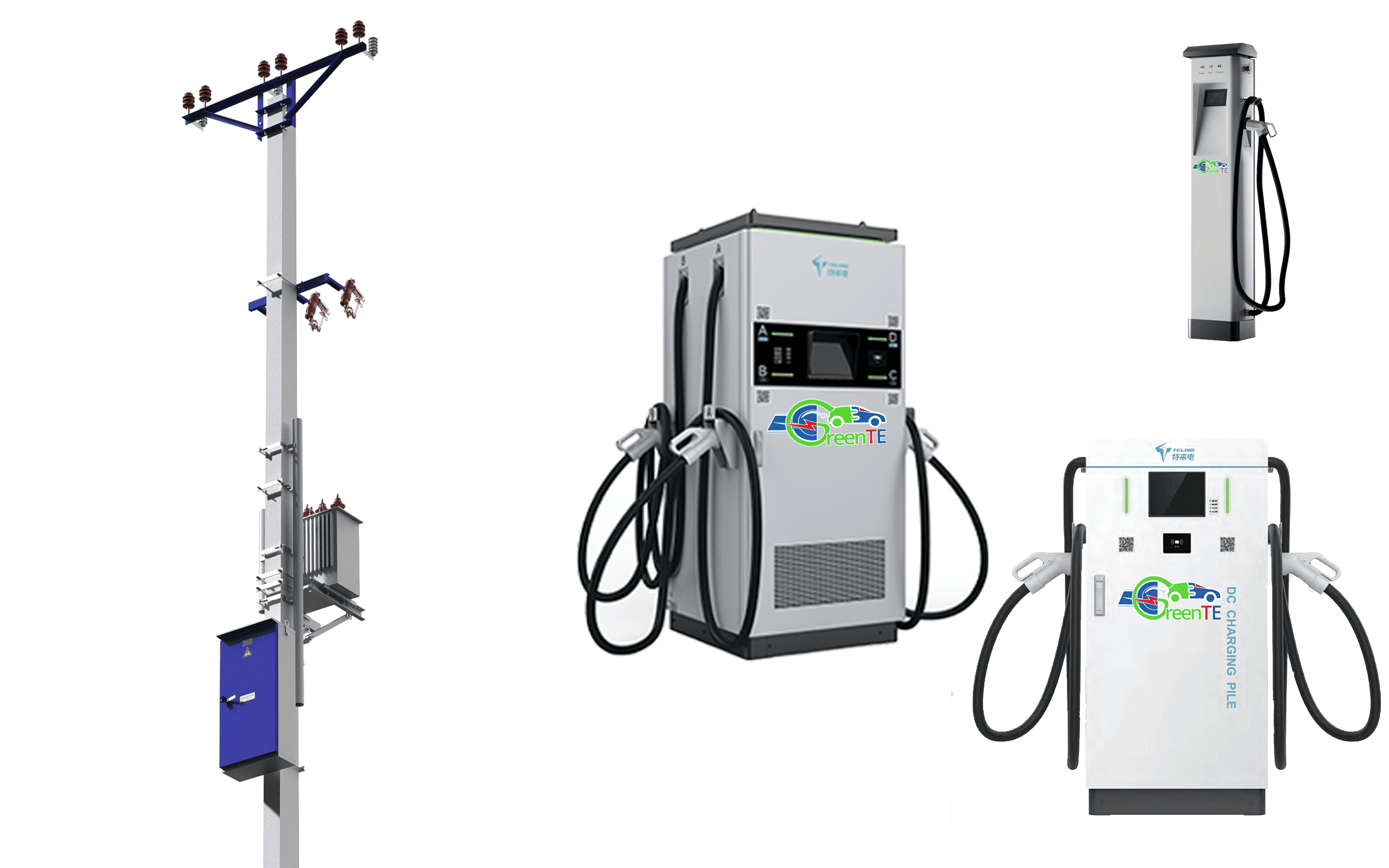

Packaged mast type transformer substations (KTPM, KTPMo)

Групповые зарядные станции TZKX
Групповые зарядные станции TZKX

Packaged mast type transformer substations (KTPM, KTPMo)

Complete transformer substations of three-phase, mast, dead-end type KTPM (single-phase, KTPMo) with one transformer, are designed for receiving, converting and distributing electric energy of three-phase alternating current of industrial frequency.

Specifications of KTPK

  • Power transformer power: up to 250kVA
  • Rated voltage on high voltage side (HV): 6-10kV
  • Rated voltage on low voltage side (LV): 380/400V (220-250V, for KTPMo)
  • Operating frequency: 50Hz
  • Maximum permissible power of the connected charging station: 160kW*

* according to the project.

Packaged transformer substation of rural type (KTPS)

Групповые зарядные станции TZKX

Packaged transformer substation of rural type (KTPS)

Packaged transformer substations of rural type (KTPS). They are destined for receiving, converting and distributing electric energy of three-phase alternating current of industrial frequency 50 Hz with a capacity from 25 to 630 kVA.

Specifications of KTPS

  • Power transformer power: up to 250kVA
  • Rated voltage on high voltage side (HV): 6-10kV
  • Rated voltage on low voltage side (LV): 380/400V
  • Operating frequency: 50Hz
  • Maximum permissible power of the connected charging station: 160kW*

* according to the project.

Групповые зарядные станции TZKX

Packaged transformer substations of urban type (KTPG, 2KPTG)

Групповые зарядные станции TZKX
Групповые зарядные станции TZKX

Packaged transformer substations of urban type (KTPG, 2KPTG)

Packaged three-phase transformer substations, urban type (KTPG, 2KPTG), are destined for receiving, converting and distributing electrical energy of three-phase alternating current of industrial frequency 50Hz with a voltage of 6 (10)kV.

Specifications of KTPG

  • Power transformer power: up to 1000kVA
  • Rated voltage on high voltage side (HV): 6-10kV
  • Rated voltage on low voltage side (LV): 380/400V (220-250V, for KTPMo)
  • Operating frequency: 50Hz
  • Maximum permissible power of the connected charging station: 480kW + 160kW + 40kW*

* according to the project.

Packaged transformer substation of industrial type (KTPP)

Packaged transformer substation of industrial type (KTPP)

Packaged transformer substations of industrial type (KTPP) are destined for receiving, converting and distributing electric energy of three-phase alternating current of industrial frequency 50 Hz, with a capacity from 250 to 2500kVA.

Specifications of the KTPP

  • Power transformer power: up to 2500kVA
  • Rated voltage on high voltage side (HV): 6-10kV
  • Rated voltage on low voltage side (LV): 380/400V (220-250V, for KTPMo)
  • Operating frequency: 50Hz
  • Maximum permissible power of the connected charging station: 480kW (untill 3 units) + 240kW + 40kW*

* according to the project.
